Product Introduction

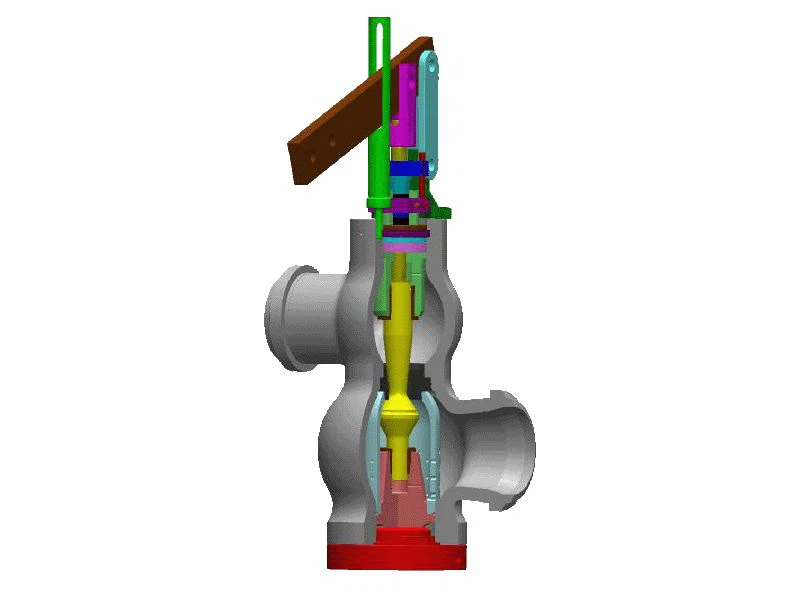

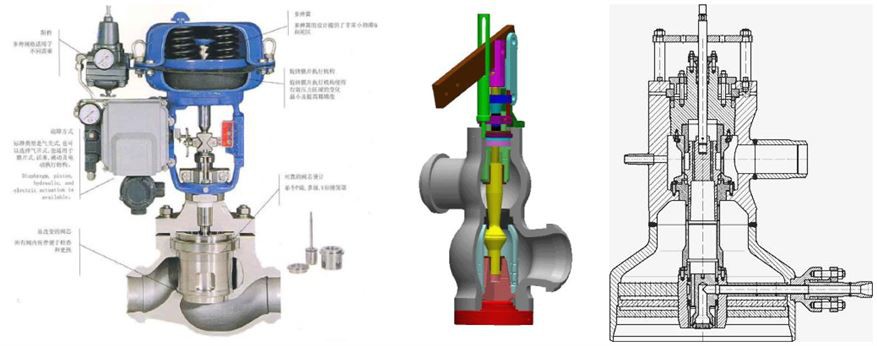

High temperature pressure reducing valve is a valve that reduces the inlet pressure to a certain outlet pressure by adjusting, and relies on the energy of the medium itself to keep the outlet pressure stable automatically. From the point of view of fluid mechanics, the pressure reducing valve is a local resistance can change the throttling element, that is, by changing the throttling area, so that the velocity and kinetic energy of the fluid change, resulting in different pressure loss operating principle Is to adopt the temperature and pressure-releasing valve control valve open-close part of the opening in the body to adjust the flow of the medium, the medium pressure is reduced, at the same time with the aid of the role of the valve after pressure adjust the opening of open-close part, keep the valve after pressure within a certain range, and the valve body or valve after the injection of cooling water, reduce the temperature of medium, the valve is called high temperature pressure reducing valve
Desuperature device: the desuperative water atomization device specially designed by the aerodynamics technology is used to reduce the power consumption of the equipment by the fluid's own power, and the desuperative water is crushed into a mist of water droplets and steam to evaporate quickly and completely, thus achieving the effect of reducing steam temperature.
Product Advantage
1. The valve sets deceleration, temperature, pressure and noise reduction in the valve body once completed, equipped with a self-sealing valve cover.
2. Decompression through multi-level cage throttle, accurate adjustment, no noise, high reliability.
3. Temperature reduction through the high turbulence area in the following adjustable mechanical atomizing nozzle surface, atomizing effect is good, no water hit, adjustable range is large.
4. Considering the high temperature conditions, reasonable selection of joint clearance, and a double guide mechanism, so that the operation is stable and flexible, no jam resistance.
Why choose us
Specialized in steam, hot water and other industrial fluid control equipment and applications, automation control sets, system integration, process on-line continuous control system.Energy-saving, environment-friendly, modular, intelligent, and professional steam thermal system energy-saving and environmental protection of the best solutionbeen
