Product Introduction

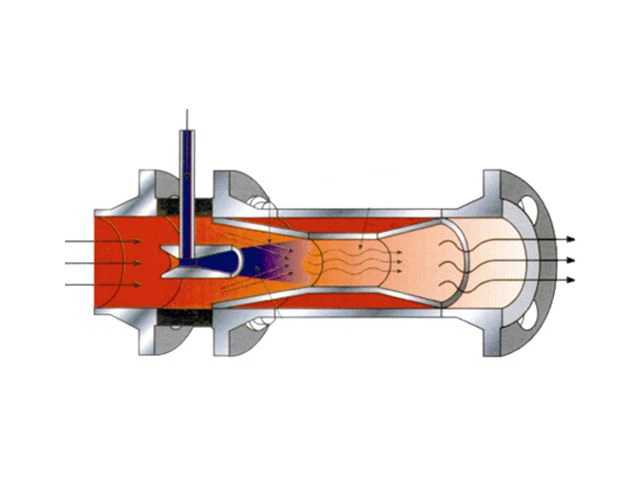

Venturi desuperheater includes a De Laval nozzle that uses a portion of the inlet steam to create high-speed and turbulent flow at the point of injection of desuperheater, which is pumped in by steam and sufficiently atomized to achieve good desuperheater efficiency.
Product Advantage
Venturi desuperheater have no transmission parts, dehydrating water atomization effect is good, nozzle disassembly and installation is convenient, easy maintenance
Product Structure
When the steam temperature control system senses the signal to reduce the steam temperature, the actuator instructs the valve core assembly of the desuperheater to act and automatically changes the flow area of the nozzle to adjust the steam temperature at the secondary outlet. When the desuperheater is not in use, the valve spool automatically moves upward to close the inlet of desuperheater. Its performance characteristics are: 1, small size, easy installation, can be installed horizontally or vertically. 2, good atomization, vaporization speed is fast. 3. accurate control can make the steam temperature adjustment range is wide.
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you
